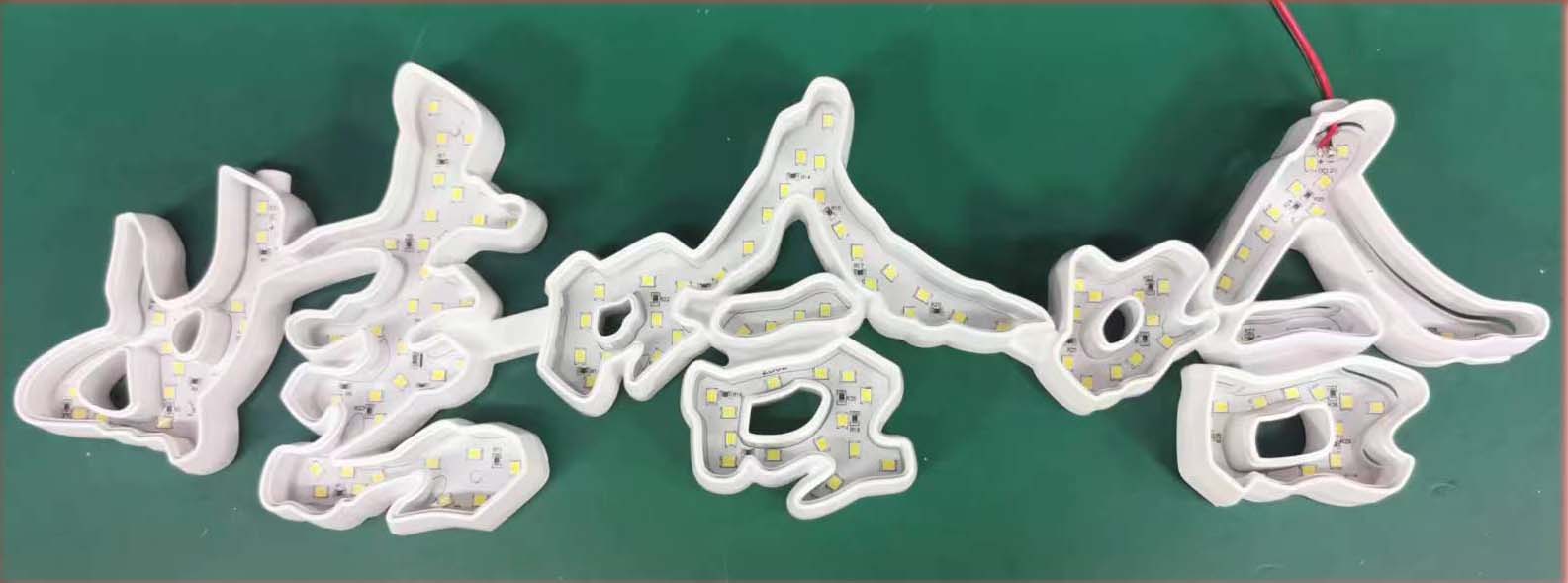

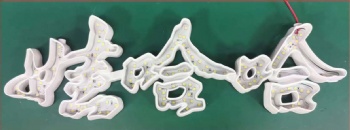

1. The back panel of the shell is integrally formed by ABS injection molding 2. Panel: deep red acrylic injection molding board 3. Osram brand lamp beads: color temperature 6500K 4. Aluminum substrate, zigzag circuit board 5. Anti-UVB, temperature resistance -20---85 degrees 6. Withstand breakdown voltage 9KV
1. Panel: 2mm acrylic light diffusion plate is seamlessly embedded.
2. Shell: ABS plastic raw material, disposable mold injection molding, thickness 3CM;
The injection molded letter case made of ABS material has good dimensional stability and is not easy to deform.
Its surface is easy to paint and color, and its flame retardant grade is 94V-1.
3. Circuit board: 1.0 aluminum substrate (shaped board).
4. Lamp beads: specification model (2835), color temperature (6500K and above), chip brand OSRAM,
High folding hard silicone, single 0.2W, red copper bracket/gold wire, light decay <10% within 2 years.
5. Resistance: specification (1206) model (110).
6. Power cord: 22# high temperature resistant silicone red and black power cord.
